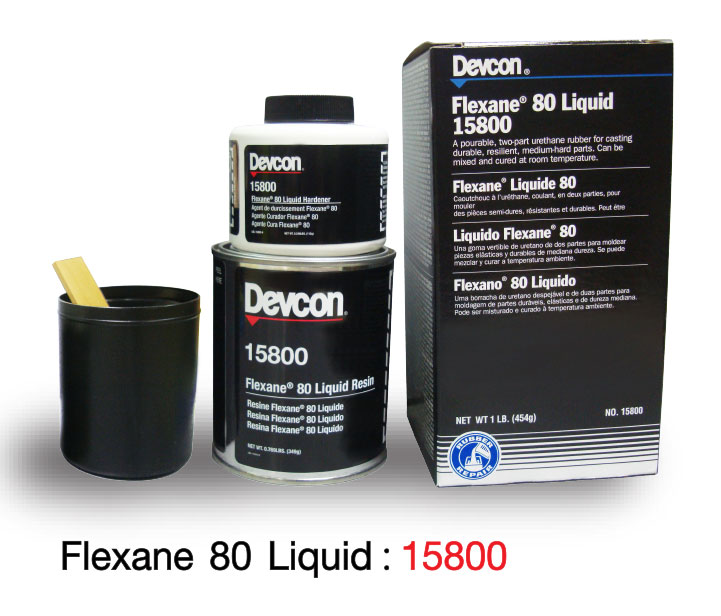

Flexane 80 Liquid B: P/N 15800 (454 gr.) .045 m @ .068 in (6.3 mm.) Thickness

MOLD, CASTING & LIQUID EPOXY COMPOUNDS STEEL AND ALUMINUM CASTING

Use: Urethane Filled Liquid Epoxy for making rubberized holding fixtures, forming dies & molded parts. Once hardened, material can be drilled, tapped and machined. Cover and Protect electrical components and wire from impact & vibration.

Drying Color: Black Rubber Liquid. Brush a thin coat on the mold substrate, then pour.
Application Note: Used hot air blower on external surface of mold to remove air bubbles from mixture.
Working Time: 20 minutes.
De-Molding Time: 10 hours.
Full Cure: 16 hours at Room Temp.
Mix Ratio by Weight: 77:23
Working Temperature: Dry: 82 °C , Wet: 50 °C
Tensile Strength: 2,100 PSI. (14.48 MPa)
Tear Resistance: 350 PLI.
Hardness: 87A Shore D
