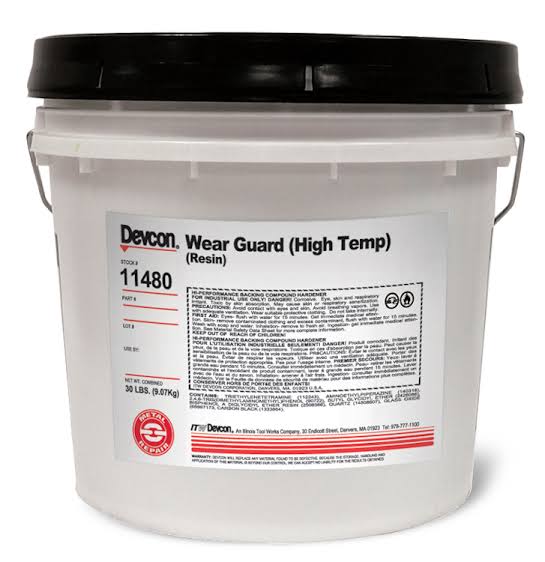

WEAR GUARD HIGH TEMP 11480

Category:ABRASION/CORROSION & WEAR
Brand:

ABRASION/CORROSION & WEAR REPAIR EPOXIES

*Alumina Filled Epoxy *Strong Adhesion & Wear Resistance *Protect Against Chemical Corrosion *Protect Dry Handling & Storage Machinery *Prepare Surface *Mix Properly *Apply by Troweling or Brushing

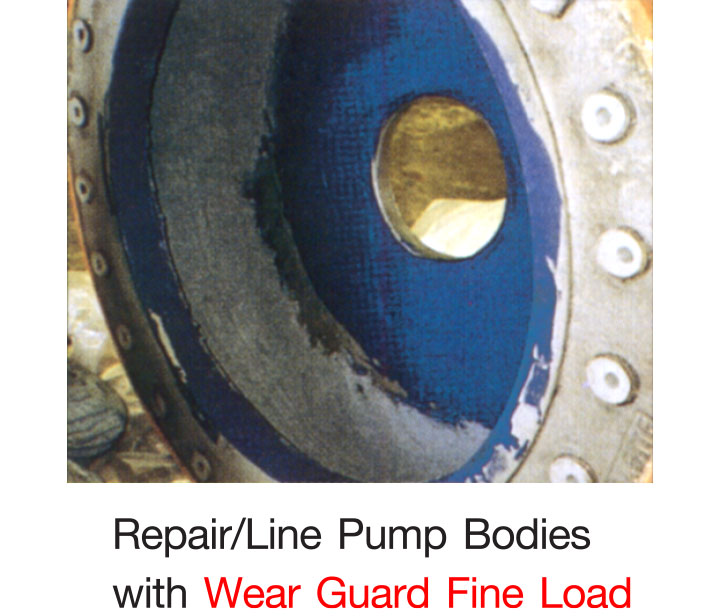

Ceramic epoxies are used to rebuild and repair damage from abrasion/corrosion and wear on pump casings, impeller blades, valves, process machinery, circulating water equipment, chutes, hoppers and equipment used in corrosive and abrasive environments. Coating this equipment extends the working life and improves performance.

Wear Guard High Temp: P/N 11480 30 lbs. 1.2 m 2 @ .025 in (6.3 mm.) Thickness

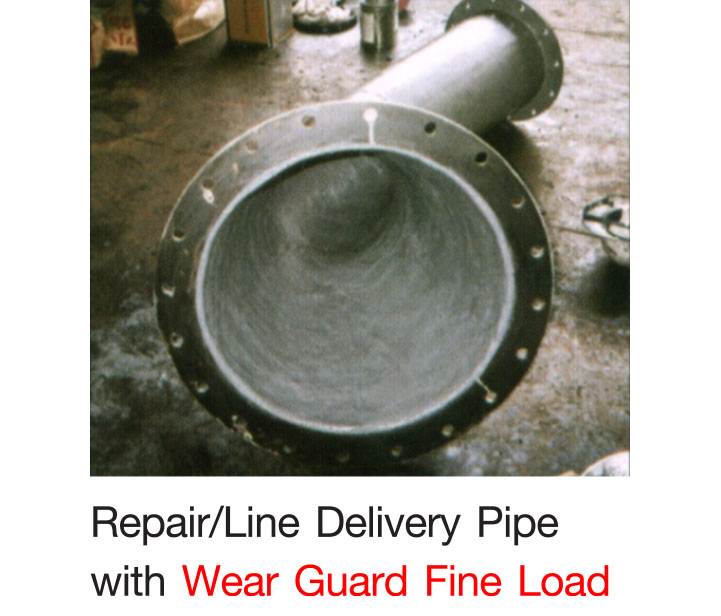

  • Special High Temperature Formula for Wear Resistance. Non-Sag Putty. For Abrasion Resistance against particle size < 3.17 mm. Repairs: Scrubbers, Ash Handling Systems, Pipe Elbows, Coal Pipe Lining, Screens, Chutes, Bins, Hoppers, Impellers.
  • Drying Color: Non-Sag Grey Putty
  • Working Time: 30 minutes.
  • Functional Cure: HEAT CURE
  • Volume Mix Ratio: 6:1
  • Working Temperature: Dry: 200 °C , Wet: 66 °C
  • Adhesive Tensile Shear Strength: 2,300 PSI. (15.85 MPa)
  • Compressive Strength: 13,200 PSI. (91.0 MPa)
  • Hardness: 87 Shore D
