ABRASION/CORROSION &WEAR REPAIR EPOXIES

*Alumina Filled Epoxy *Strong Adhesion & Wear Resistance *Protect Against Chemical Corrosion *Protect Dry Handling & Storage Machinery *Prepare Surface *Mix Properly *Apply by Troweling or Brushing
Ceramic epoxies are used to rebuild and repair damage from abrasion/corrosion and wear on pump casings, impeller blades, valves, process machinery, circulating water equipment, chutes, hoppers and equipment used in corrosive and abrasive environments. Coating this equipment extends the working life and improves performance.

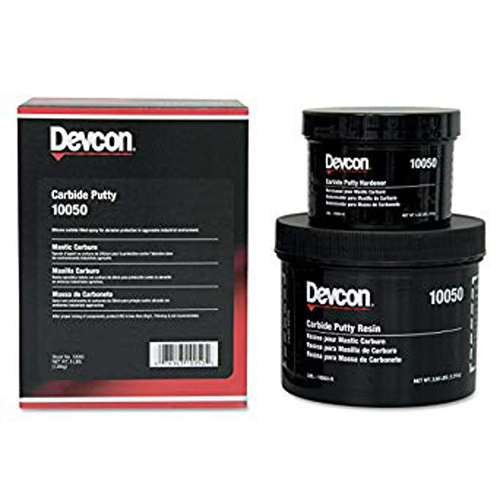

Carbide Epoxy Putty: P/N 10050 3 lbs. (1.35 Kg.) 0.4 m 2 @ .025 in (6.3 m.m.) Thickness

Repairs: Lower Cost Alternative to Ceramic Repair Putties and Epoxy For Rebuilding Metal and Providing Protection for Elbows, Pulverizers, Cyclones and Exhauster Liners.

Drying Color: Grey Putty
Working Time: 20 minutes.
Full Cure: 16 hours.
Volume Mix Ratio: 4:1
Working Temperature: Dry: 121 °C , Wet: 49 °C
Adhesive Tensile Shear Strength: 1,350 PSI. (9.3 MPa)
Compressive Strength: 8,160 PSI. (56.26 MPa)
Hardness: 85 Shore D
